ZT-7 BGA, CSP & SMT HOT AIR REFLOW CENTER
Programmable & Comprehensive Hot Air Solution for BGA, CBGA, CCGA, MLF, SMT, µBGA and CSP Rework & Repair, Plus
 Reballing BGA's, BGA Alignment, Placement, Preheat and Reflow at the Bench! SMT Repair Like No Other!
The Zephyrtronics ZT-7 System "makes mounting and removal of through-hole and surface mount components easier
 than routine benchtop methods" and "minimizes thermal stresses due to temperature differentials during assembly and rework"
 and "enables the mounting of Ball Grid Arrays and other hidden pin packages on site." -- NASA Report, Jan. 9, '04

Yes, this is the very system that set all the standards! Thousands now on benches around the world, the patented, time-tested ZT-7 makes quality PCB prototype tasks and rework easy. It easily outperforms other "high end" BGA stations priced over $20,000-$50,000. Yet it is so affordable starting at $3,995!

Align, place and solder BGA, SMD, QFN, LGA chips (just so many more) and/or de-solder and automatically remove them without lifting PCB pads or thermally damaging adjacent chips!



Used by NASA and JPL on both successful Mars Rovers launched in 2003 and the Mars Phoenix project, the ZT-7 was engineered for dependability and long, industrial life. This is still the best BGA & SMD rework station. Moreover, it has a full 2-Year limited warranty!

Each ZT-7 is manufactured under tight control at the Los Angeles factory of  Zephyrtronics, winner of the coveted Vision Award for Best New Product at the Surface Mount International Expo in Silicon Valley.

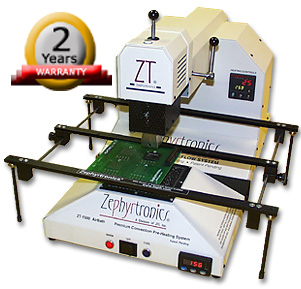

Hot Air Rework, BGA & SMD Stations. Program, Ramp, Soak, Store, Profiles
                                                        TM

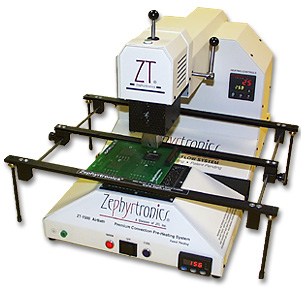

The Zephyrtronics ZT-7-000 BGA, SMT & CSP Comprehensive Benchtop System.
Video!  See the ZT-7 System in Action!

Thermal Profiles, Programmable, Ramp, Soak, Temperature Control

31 Programmable Thermal Profiles!
 Full Ramp & Soak. Customize, Store
 Your PCB Profiles

Program Up to 31 Custom Thermal Profiles! The ZT-7 does not rely on do-it-yourself, unrepeatable, unreliable, external "taping" thermocouples to your PCB. Temperature control is integrated into the system with full closed-loop sensing. The easy-to-access front panel controller permits up to 31 custom thermal profiles with multiple ramp, soak and final solder reflow functions, all storable for different PCB's!



Preheat your chip from above while your PCB is also preheating below to speed up your process and for greater quality.  You have control. The ZT-7 does not rely on unpredictable, unstable infrared (IR) for preheat or solder reflow, but utilizes the long-established and superior industry standard (60 years) of forced convection. The ZT-7 is the #1 PCB station for Smartphone, Laptop, Tablet and Flat Screen repair.

How to Repair & Solder Laptop & Tablet PC Boards
Tablet & Laptop Repair

How to Repair & Solder Smartphones PC Boards
Smartphone Repair




Video:  Why Rework Stations Must Have Independent PCB Holding Fixtures


How to Align BGA's Accurately to the Pads  Quick & Easy

SMD Removal
Leadless Chip
Carrier (LLC's)

Align, Place, Solder
Desolder & Remove

Shielded Component Removal
Shielded Chips
Align, Place, Solder Desolder & Remove

Socket Removal
SMT Sockets
Align, Place, Solder,
 Desolder & Remove


CSP Rework
Chip Scale (CSP's)
Align, Place, Solder
Desolder & Remove

 More Details

Simplicity & Reliability: The easy-to-operate ZT-7 was developed for prototype work, low volume production, secondary operations, and rework of electronic printed circuit board assemblies (PCBA’s) at the bench for BGA, CSP and/or SMT components.  All of the critical process controls "built in." The ZT-7 was engineered to eliminate need for compressed air hook-ups, air pressure settings, external fanning equipment, awkward foot pedals. There are no exposed air hoses or moving electrical cords as with other "systems".  The ZT-7 is a fully-integrated, digital system for meticulous, thermal profiles just like those in high volume production equipment with temperature ramp, preheat, soaking, solder reflow and cooling. Plus, the ZT-7 is whisper quiet in operation with big LED digital display, not tiny eye-straining LCD displays.

So Many Novel Features:
The ZT-7 features closed loop feedback, digital temp control; a digital countdown timer with audible beeper for process and profile uniformity; a heating zone with the unique capacities of both 1.) a "Z-Axis" which raises and lowers the heating zone to the targeted chip; and 2.) a "Y-Axis" that retracts and returns the heat zone before and after soldering so technicians can align, flux, prep, clean, inspect without a heat zone in their face. (Both Z and Y axis are on precision linear bearing for smooth, accurate and repeatable travel.)

Unique, Sliding & Retractable Heat-Zone: The ZT-7 heat zone travels to the targeted chip unlike other BGA "machines" with functionally-fixed heat zones. Technicians can prep, solder, desolder, clean and inspect their PCB without moving the board. David Jacks, president of Zephyrtronics, introduced this concept to the world in the early 1980's. The ZT-7 slidable heat zone rides on precision ball bearings, not cheap, jerky kitchen door slides on other "machines".

On Benchtops Around the World! From high reliability applications (space, military and medical) to even rework of commercial video game consoles like the XBOX360® or PlayStation® or smart-phones, tablets, laptops and flat-screens, the ZT-7 is at work even as you read this around the globe.



How to Align BGA's to the PCB Pads? With our exclusive and patent protected Single-Spot, Single Axis Alignment, Placement & Reflow. The ZT-7 System NEVER requires moving the PCB once your BGA or SMD is aligned and placed.

To learn how to quickly and precisely align and place BGA’s to substrate pads, how NASA "explains" this simple method of placing BGA's to pads, and how to redress pads without solder wick, see Re-Dressing Your BGA Pads.

Auto-Lift De-Soldering: For de-soldering and removing chips, a semi-automatic spring-activated vacuum probe lifts BGA's and SMD's up off a PCB as solder melts taking out the guesswork -- so you won't lift pads. When the solder melts, the chip pops up into the nozzle! See this actual BGA desoldering process in this short, helpful Video: DeSoldering & Removing a BGA. The video shows actual board prep, aligning, flux application, automatic chip removal, cleaning and touches on inspecting the PCB and familiarizes you with the ZT-7 in action!

Forced Hot Air Convection is Superior to IR for PCB Prototyping, Rework & Repair:  There are many problems with infrared (IR) for PCB's, which is why it really never caught on and why so many of these "systems" have been relegated to landfills. Some drawbacks (many enumerated in articles and white papers at electronic expos) range from serious chip shadowing and lack of true thermal ramping because repeatable temperature control is not likely with IR. IR "systems" depend on technician guess work, including an idiotic requirement of taping thermocouples to your PCB to achieve sensing feedback. But the ZT-7 has built-in, closed-loop, temperature sensing during both preheat and solder reflow. No "taping" of thermocouples or using aluminum foil is required. Learn of the many problems with IR systems here Pitfalls of IR Preheat & Reflow System Video.

The ZT-7 is not limited to only surface mount devices, but excels for even difficult through hole (PTH) de-soldering tasks with connectors, sockets, metal shields and PGA's.




Video: Live Demonstration of BGA & SMD Rework


Video:
Why IR Rework Stations Are So Inferior

BGA Removal
BGA's & Glob Tops
Align, Place, Solder Desolder & Remove
QFP Removal
Quad Flat Packs
(QFP's) & SOL's

Align, Place, Solder
Desolder & Remove

PLCC Removal
PLCC'S and SOJ's
Align, Place, Solder Desolder & Remove


Reballing BGA
Re-Ball Your
BGA’S & CSP’S

Click  for Details

Ultra Low Air Velocity From Nozzles. The ZT-7 has less than 18 CFM of air velocity at the nozzle. This is critical for three reasons:

1.) Our low velocity heated air from the nozzle prevents unwanted adjacent chip reflow. Because caps and resistors surround BGA's, low air velocity is a key advantage!

2.) Our low velocity heated air won't blow or scatter solder about unlike other hot air stations.

3.) Our less-than-18 CFM air velocity helps prevent hydroplaning small chips. Aligned chips stay put.

What's Our Secret? Low velocity nozzle air flow is only possible because Zephyrtronics has ample preheating air flow from below the PCB with our AirBaths™. High volume, low temp preheated air flow from below permits minimal air velocity above from the nozzle. Other rework machines get this so wrong. Ineffective preheat requires wrongly compensating with higher temps and nozzle air velocity. Very bad.

What about QFN's and E-Pads? Those pesky QFN packages and their "e-pads" or "thermal pads" or "belly slugs" on the chip's bottom are easy to work with with the ZT-7! And this is a big advantage when using lead-free solders.

BGA Nozzles
             TM
Patented BGA Alignment Template
Eliminates  Need for Expensive Vision Systems. World Famous & Recognizable Trademarked Design.



Extra Large PCB's Are No Problem!  The ZT-7 easily accommodates  PCB's up to 20.5 inches (52 cm) in depth (no limitation in length). Naturally, smaller PCB's are no problem either. Part of the innovation of the ABC Board Cradle is that the PCB locking knobs are not on the top, so even gigantic PCB's can rest flush on the table top open frame. Brilliant!

Modularity & Independent PC Board Fixture:  The ZT-7 works in concert with our AirBath Bottom-Side Preheaters and ABC-1 Board Cradles. AirBath Preheaters nest right under the ZT-7.

Because ABC Board Cradles is Independent from both the ZT-7 and the preheater, it is possible to work simultaneously with multiple PCB's. A technician can preheat other PCB's in tandem on another ABC cradle and "swap" them back and forth doubling up productivity! Further, the system's modularity allows a technician to use the ZT-7, the AirBath™ Preheater and/or Board Cradle independently at different benches if needed. Is this really important? You bet it is. Here's a short 4 minute video anyone considering purchasing a rework station should view and seriously consider: Advantages of Independent PCB Holders.



Hot Air Rework Station
The ZT-7 Handles Large PCB's
 Up to 20 1/2" (52 cm) Deep




Easy Nozzle Docking With 360° Nozzle Theta Rotation Adjustment: Insert and remove nozzles from the dock without screwdrivers or tools. Nozzles slide into the tray and lock in place. The ZT-7 features two 360° adjustments for both nozzle and the vacuum probe. Ideal for angled and/or skewed chips.

Vast SMD & BGA Nozzles Available at Low Cost: Since we are "the factory", we have been fabricating nozzles since 1998 and have thousands of various styles from 50mm x 50mm to 2mm x 2mm in stock. And custom nozzles require less than 10 days and cost no more than our regular nozzles.

See Our Enviable Nozzle Catalog Here: BGA/CSP Nozzles or SMT Nozzles. And all very low priced!

All Zephyrtronics nozzles are permanently "stamped" with both the part number and the size of the nozzle for your quick reference! Who else does that for you?

Critical Post-Cooling Feature: The ZT-1 AirBath is not just a preheater, but also has a "Post Cooling" mode. Post-cooling BGA's an absolute requirement so molten balls/pads interface cool quickly preventing bridges and "opens". For more info: Two Critical Processes: Pre-Heating & Post Cooling.

BGA Theta Adjustment, Hot Air Rework Station
Front-Access Nozzle Dock Makes Changing Nozzles Quick & Easy. Nozzles "Lock In" Securely!




RoHS Lead-FreeThe ZT-7 Excels with RoHS Compliant, Lead-Free Solders!  Because every ZT-7 Hot Air System includes a ZT-1 AirBath preheater, lead-free soldering is a breeze.  Unlike some systems, you won't need to remove adjacent chips by the BGA before soldering or desoldering. The powerful capacity of the AirBath Bottom-Side Preheaters is the key element here. Learn more here about the RoHS Lead Free Mandate.

Production Quality Profiles: Because the air temps of the ZT-7 and the ZT-1 are managed by easy-to-use digital controllers on the front panels, technicians can confidently expect thermal profiles at the bench like those with high volume production equipment like conveyor ovens, IR/Vapor and wave solder machines. So why buy one of those machines that don't work?



 The ZT-7 Selected by NASA & JPL




NASA Launch


Don't let the simplicity and affordability of the ZT-7 let you underestimate its capacity, utility or its quality performance. This is the very same ZT-7 chosen by both NASA and JPL for soldering the BGA's and SMD's on the two high-reliability and highly successful Mars Rovers. Even the largest full metal-topped BGA's used on both of the Mars Rovers were soldered with the Zephyrtronics ZT-7!

Indeed, NASA engineers prepared a 39-page document touting the ZT-7 System in a detailed report for its employees which includes nearly 300 color photographs of the system along with helpful tips for prototyping PCB's and rework, repair, soldering and desoldering. This helpful report is included with every ZT-7 along with the Zephyrtronics detailed Owners Manual. What other manufacturer of SMD/BGA stations can make that claim?




The ZT-7 is used by engineers in aerospace companies like Lockheed-Martin® and Boeing®, and in the labs at Harvard, M.I.T., Sony®, Intel®, International Rectifier®, National Semiconductor, Xilinx®, LSI Logic®, Motorola®, Agilent®, the CIA and many more of the world's most prestigious commercial, academic, military, medical and electronic campuses. Since 1998, it has consistently been the number one SMT & BGA benchtop system.

Easy to use? Absolutely. Affordable? Definitely. Dependable quality? Well, the solder joints made with the Zephyrtronics ZT-7 by JPL were catapulted out of the atmosphere at 4 million Newtons (900,000 pounds) of thrust, traveled over 500 million kilometers (310 million miles) at 25,000 miles per hour enduring extreme thermal conditions coupled with exposure to gamma rays, survived landing impact onto the red planet's surface allowing both Rovers to perform so admirably on the rugged terrain of Mars. How's that for quality solder joints?




SPIRIT

  BGA Rework, NASA, JPL, & SMD   OPPORTUNITY   mars photo


Launch of 1st Rover,
Spirit in June 2003
Spirit Arrives on Mars
January 2004

  39-Page Rework Guide
by NASA With 300 Photos
Ships With Every ZT-7 System
  Launch of 2nd Rover,
Opportunity in
July 2003
Opportunity arrives on Mars       January 2004
    Photography Courtesy
 of  NASA & JPL

THE  ZT-7 REFLOW SYSTEM’S CAPACITY
Types of Components Still More Applications Features & Benefits
BGA (Ball Grid Arrays) MLF (with Thermal Slug) BGA & CSP Accurate Alignment
Micro BGA RF Shields Low Temp Reflow
CSP (Chip Scale Packages) SMT Connectors Low Velocity Air Flow at Nozzle
Flip Chips Fiber Optic Components High Velocity Air Flow at Preheat
Glob Tops Barrel, Plugs & Pins Stores Up to 31 Custom Thermal Profiles
Stacked Memory Chips Plastic Sockets Y Axis (Back & Forth Heat Zone)
LCC, QFP, PLCC RF & Edge Connectors Z Axis (Up & Down Heat Zone)
SOIC, SOL, SOJ Flat Screen Television Repair 360° Nozzle Control
LGA, GPU, CPU Thru-Hole Connectors Bottom & Top Side Post Cooling
QFN (with Thermal Slug) Conformal Coating Tasks Handles Up to 20 1/2” PCB’s
CGA, BCC, PGA Reballing BGA’s & CSP’s Duplicates Original Production Profiles
Full Metal Top BGA & CGA Redressing BGA & CSP Pads Digital Temp Control & Display
Metallic MCM Lead-Free Applications Digital Countdown Audible Timer
Cu Heat Sinking Power Amps Prototype & Design Lab Work Auto-Spring Chip Lift-Off in DeSoldering
Ceramic Capacitors (Down to 0201’s) Low Volume Production Easy Front-Loading Nozzle Docking
SMT Resistors CPU Computer & Lap Top Repair Lead-Free Capacity
Lead-Free Components Rework & Repair BGA, CSP, SMT Self-Contained Air Supply (No Hookups
All SMT Components! Cell Phone & Video Game Console Repair Vacuum Suction Lifting for Chips


BGA Theta Adjustment, Hot Air Rework Station
Rapid, Easy Nozzle Docking!       No Tools Required. Nozzle Slides In & Out of Convenient Front Access Tray. Unique Lock Prevents Nozzle Movement.

Vacuum Probe, Hot Air Rework Station
Spring Activated Vacuum for Placing & Removing Chips. Probe features 360° Full Rotation for Component Theta Control.
Probe Auto Lifts Chip at Reflow.

Temperature Control, Hot Air Rework Station
Precision, Closed Loop Digital Temp Control  With Real Time  Digital Display of Thermal Activity. Plus Set/Read Buttons.




Hot Air Nozzle, Hot Air Rework Station
360° Full Nozzle Rotation for Skewed or Angled Components. Plus a Component Theta Probe. (Double Theta Capacity.

Slideable Heat Zone, Hot Air Rework Station
Unique Slidable Y-Axis Heat Zone Permits Back & Forth Motion On Precision Ball Bearings (Not Cheap Kitchen Drawer Slides!) Y Axis Allows You to Align, Place, Solder, Clean & Inspect at Same Spot.

Comprehensive, Hot Air Rework Station
Up to 31 Programmable Custom Profiles & Up to 99 Segments At Front Panel With Big LED Easy-to-Read Display. No Eye-Strain LCD.

Hot Air Rework System
The ZT-7 Handles Big PCB's
 Up to 20 1/2" (52 cm) Deep.
The ZT-7 Will Work With Any Zephyrtronics AirBath Preheater

Vacuum Lift-Off, Digital Hot Air Rework Station
Convenient and Easy to Access
Lighted Vacuum Switch Is Right
Where You Need it. No Need for Clumsy Foot Pedals.

Z-Axis, Digital Hot Air Rework Station
Z-Axis Lever for Raises & Lowers Heat Zone To & From PCB Assy. Aligned BGA's Never Are Move Once Placed. Onto PCB.

Zephyrtronics Benchtop System Were World-First With Replication of the  Original Soldering Profiles Used in Conveyor Ovens Even Including PostCooling™!


ZT-7 COMPREHENSIVE HOT AIR BENCH TOP SYSTEMS
Description
Model Price

BGA Rework Station

BGA & SMD Base Station
The ZT-7-MIL-120 BGA/SMT Stand-Alone Reflow Unit
Our 120 Volt Model for the U.S.A., Canada & Mexico

BGA & SMT Programmable Hot Air Benchtop Reflow Station/System
Ramps, Soaks, Preheats, Reflow Solders & De-Solders & Chip Removal
Prototype Design Labs, PCB Rework & Repair, Multi-Tasker.
Detailed Owners Manual & 39-Page NASA Report With Nearly 300 Photos
ZT-7-MIL-120 ONLY
$3,995

The ZT-7-MIL-230 BGA/SMT Stand-Alone Reflow Unit
Our 230 Volt Model for International Customers

BGA & SMT Programmable Hot Air Benchtop Reflow Station/System
Ramps, Soaks, Preheats, Reflow Solders & De-Solders & Chip Removal
Prototype Design Labs, PCB Rework & Repair, Multi-Tasker.
Detailed Owners Manual & 39-Page NASA Report With Nearly 300 Photos
ZT-7-MIL-230 ONLY
$3,995

SMD, BGA, Rework Solution
ZT-7003 System
The ZT-7003-120 Comprehensive System
Our 120 Volt Model for the U.S.A., Canada & Mexico
A Comprehensive BGA & SMT Hot Air Bench Top Reflow System

Includes:
The ZT-7-MIL Programmable Reflow Center (Shown Above), Plus
The ZT-1-CLS-MIL-120 Compact, 10 CFM Analog AirBath Preheater
The ABC-TQ Adjustable Board Cradle
Detailed Owners Manual & 39-Page NASA Report With Nearly 300 Photos
& Our Helpful 17-Page BGA Primer
ZT-7-MIL-120
ZT-1-CLS-MIL-120
ABC-TQ
If Purchased Individually
$4,885


YOU SAVE
$200
!

$4,685


BGA Station, SMD Station, Rework, Programmable

ZT-7002 System
The ZT-7002-120 Comprehensive System
Our 120 Volt Model for the U.S.A., Canada & Mexico
A Comprehensive BGA & SMT Hot Air Bench Top Reflow System

Includes:
The ZT-7-MIL Programmable Reflow Center (Shown Above), Plus
The ZT-1-CLS-DPU-120 Compact, 15 CFM Digital AirBath Preheater
The ABC-TQ Adjustable Board Cradle
Detailed Owners Manual & 39-Page NASA Report With Nearly 300 Photos

ZT-7-MIL-120
ZT-1-CLS-DPU-120
ABC-TQ
 If Purchased Individually
$5,185


YOU SAVE
$400
!

$4,785

The ZT-7002-230 Comprehensive System
Our 230 Volt Model for Our International Customers
A Comprehensive BGA & SMT Hot Air Bench Top Reflow System

 Includes:
The ZT-7-MIL Programmable Reflow Center (Shown Above), Plus
The ZT-1-CLS-DPU-230 Compact, 15 CFM Digital AirBath Preheater
The ABC-TQ Adjustable Board Cradle
Detailed Owners Manual & 39-Page NASA Report With Nearly 300 Photos
& Our Helpful 17-Page BGA Primer
ZT-7-MIL-230
ZT-1-CLS-DPU-230
ABC-TQ
If Purchased Individually
$5,185

YOU SAVE
$400
!

$4,785


Digital Hot Air Rework System


ZT-7001 System

The ZT-7001-120 Comprehensive System
Our 120 Volt Model for the U.S.A., Canada & Mexico
A Comprehensive BGA & SMT Hot Air Bench Top Reflow System

Includes:
The ZT-7-MIL Programmable Reflow Center (Shown Above), Plus
The ZT-1-HIS-DPU 25 CFM Digital AirBath Preheater
The ABC-1-Q Adjustable Board Cradle
Detailed Owners Manual & 39-Page NASA Report With Nearly 300 Photos
& Our Helpful 17-Page BGA Primer
ZT-7-MIL-120
ZT-1-HIS-DPU-120
ABC-1
If Purchased Individually
$5,785


YOU SAVE
$600
!


$5,185

The ZT-7001-230 Comprehensive System
Our 230 Volt Model for Our International Customers
A Comprehensive BGA & SMT Hot Air Bench Top Reflow System

 Includes:
The ZT-7-MIL Programmable Reflow Center (Shown Above), Plus
The ZT-1-HIS-DPU 25 CFM Digital AirBath Preheater
The ABC-1-Q Adjustable Board Cradle
Detailed Owners Manual & 39-Page NASA Report With Nearly 300 Photos
& Our Helpful 17-Page BGA Primer
ZT-7-MIL-230
ZT-1-HIS-DPU-230
ABC-1-Q
If Purchased Individually
$5,785


YOU SAVE
$600
!


$5,185


Digital Hot Air Rework Station

ZT-7000 System

The ZT-7000-120 Comprehensive System
Our 120 Volt Model for the U.S.A., Canada & Mexico
A Comprehensive BGA & SMT Hot Air Bench Top Reflow System

 Includes:
The ZT-7-MIL Programmable Reflow Center (Shown Above), Plus
The ZT-1-BGS-DPU-120 BigGrid™ 50 CFM Digital AirBath Preheater
The ABC-1-Q Adjustable Board Cradle
Detailed Owners Manual & 39-Page NASA Report With Nearly 300 Photos
& Our Helpful 17-Page BGA Primer
ZT-7-MIL-120
ZT-1-BGS-DPU-120
ABC-1-Q
If Purchased Individually
$6,375

YOU SAVE
$800
!


$5,575

The ZT-7000-230 Comprehensive System
Our 230 Volt Model for Our International Customers
A Comprehensive BGA & SMT Hot Air Bench Top Reflow System

Includes:
The ZT-7-MIL Programmable Reflow Center (Shown Above), Plus
The ZT-1-BGS-DPU-230 BigGrid™ 50 CFM Digital AirBath Preheater
The ABC-1-Q Adjustable Board Cradle
Detailed Owners Manual & 39-Page NASA Report With Nearly 300 Photos
& Our Helpful 17-Page BGA Primer
ZT-7-MIL-230
ZT-1-BGS-DPU-230
ABC-1-Q
If Purchased Individually
$6,
375

YOU SAVE
$800
!


$5,575

Ramp, Soak Profiles, Hot Air Station, BGA, SMD, QFN

ZT-7MEG System
(For Monster Boards)
The ZT-7MEG-120 Comprehensive System
Our 120 Volt Model for the U.S.A., Canada & Mexico
A Comprehensive BGA & SMT Hot Air Bench Top Reflow System

Includes:
The ZT-7-MIL Programmable Reflow Center (Shown Above), Plus
The ZT-1-MGS-DPU-120 MegaGrid™ 50 CFM Digital AirBath Preheater
The ABC-1-Q Adjustable Board Cradle
Detailed Owners Manual & 39-Page NASA Report With Nearly 300 Photos
& Our Helpful 17-Page BGA Primer
ZT-7-MIL-120
ZT-1-MGS-DPU-120
ABC-1-Q
If Purchased Individually
$8,240

YOU SAVE
$1,000
!


$7,240

The ZT-7MEG-230 Comprehensive System
Our 230 Volt Model for Our International Customers
A Comprehensive BGA & SMT Hot Air Bench Top Reflow System

 Includes:
The ZT-7-MIL Programmable Reflow Center (Shown Above), Plus
The ZT-1-MGS-DPU-230 MegaGrid™ 50 CFM Digital AirBath Preheater
The ABC-1-Q Adjustable Board Cradle
Detailed Owners Manual & 39-Page NASA Report With Nearly 300 Photos
& Our Helpful 17-Page BGA Primer
ZT-7-MIL-230
ZT-1-MGS-DPU-230
ABC-1-Q
If Purchased Individually
$8,240

YOU SAVE
$1,000
!


$7,240

System Centering Spacer
 Helps Align Axis of Bottom Preheater to ZT-7 Reflow Nozzle Above
 (Available Only for ZT-1-BGS-DPU, ZT-1-HIS-DPU AirBaths)
ZT-7-SPACER $46

Countdown Timer
Remote, Digital Countdown Timer
Digital, Adjustable Countdown Timer with Helpful Audible Beeper &
Pull Out Easel, Stand-Up Base, Battery. Large, Easy-to-Read Digital Display.
ZT-7-TIMER $35


ACCESSORIES FOR THE ZT-7 SYSTEM
Keep in mind there are hundreds of distinct chip package sizes for SMD's, BGA's &  QFN's that vary in height, width, depth and in
 form factors.  Zephyrtronics has nearly 300 designed & fabricated nozzles for most every conceivable application...because the
ZT-7 has over 15 years of history.

Description

Item

SMD Hot Air Nozzles, BGA Hot Air Nozzles

Hot Air
Nozzles



High Temperature Vacuum Cup Directory


Hot Air Suction CupsHot Air Suction Cups
Vacuum Cups
High Temperature, Extra Long Life
 & ESD Safe
Our premium, durable vacuum cups are
molded from high temperature, high grade
conductive silicon for use with
the ZT-7 Hot Air System.
Hot Air Suction Cup Large            Small Hot Air Suction Cups          Hot Air Suction Cup Midsize
Our suction cups lift all flat surfaced SMD's,
 BGA's, QFN's and SMD's. The cups also lift
 most concave surfaced chips and even
 many glob topped chips.

Threaded Insert Not Included


BGA Removal  SMD Removal  CSP Rework

Hot Air Suction Cups

ZT-7-021 Replacement Threaded Insert
for ZT-7 Vacuum Probe

(Included with every new ZT-7.) This is for replacements only. Vacuum cup not included

ZT-7-021
$49.00


Cup Diameter

Single Two Pack
Save 5%
Five Pack
Save 10%
Ten Pack
Save 20%!
Small Hot Air Suction Cups5mm (0.196")
High Temp
        Extra Long Life
         Vacuum Cup
ZT-7-705-S
$16.00

ZT-7-705-2
$30.40


ZT-7-705-V
$72.00


ZT-7-705-X
$128.00


Hot Air Suction Cup Midsize

7mm ( 0.275")
High Temp
 Extra Long Life
        Vacuum Cup

ZT-7-707-S
$15.00


ZT-7-707-2
$28.50


ZT-7-707-V
$67.50


ZT-7-707-X
$120.00


Hot Air Suction Cup Large9mm (0.354")
 High Temp
 Extra Long Life
           Suction Cup
ZT-7-709-S
$15.00


ZT-7-709-2
$28.50


ZT-7-709-V
$67.50


ZT-7-709-X
$120.00


CLICK HERE TO SEE EVEN MORE BENCH SYSTEMS FROM ZEPHYRTRONICS






©1996 - 2011, 2012, 2013, 2014, 2015, 2016, 2017 by Zephyrtronics®. All rights reserved. The information, text, images, photographs, charts, graphs you receive online from Zephyrtronics® are protected by the copyright laws of the United States. The copyright laws prohibit any copying, redistributing, retransmitting, or repurposing of any copyright-protected material. Zephyrtronics is the registered trademark property of JTI, Inc. "The Science of Zephyrtronics" and "Simplicity Through Innovation" and "Zephlux" and "ZeroLead" and "ZeroTouch" and "Zero Balling" and "Zero Residue" and "Post Cooling" and "Post Cooler" and "AirBath" and "SolderGlide" and "ZeroTouch" and "SolderMill" and "Just So Superior" are the protected trademark property of JTI, Inc. "Zephyrtronics" and "Low Melt" and "Air Fountain" and "Fountainhead" are the registered trademark properties of JTI Inc. *The above names are the registered property of their respective owners.



Click link below to return to the top of the page
ZT-7 BGA, CSP & SMT HOT AIR REFLOW CENTER


SMD Rework, SMT Rework
AirBath Air Bath, SMD Rework Stations, Hot Air Pencil Soldering, BGA Rework Stations, CSP Rework Stations, Preheating Systems, PCB Preheaters, Pre-Heat SMT/ SMD, Low Temp Rework, SMT DeSoldering Tools, Vacuum Pickup Tools, Circuit Board Holders, PCB Fixture & PCB Holders &, Board Cradles, Rework Solder Paste, No-Clean Solder Paste, Low Melt
® De-Solder Wire, DeSolder Wire, Hot Air Rework Stations, Fume Extractors, SMT Dental Probes, SMT, SMD Rework Kit, BGA Rework Kit, LMK Kit, BGA Re-Balling Kit, SMD Tweezers, Power Palm Plunger, QFP Lead Straightener

How To - SMT, CSP, BGA Rework
How To - BGA Alignment; How To - SMT Rework; How To - PCB Preheating, How To - BGA & CSP Rework; How To - Quickly Solder SMD Packages Effectively; How To - CSP Alignment; How To - Lead-Free Rework; How To - SMD Removal Economical; How To - SMD Removal Professional; How To - Hot Air Pencil / AirPencil Soldering; How To - SMD Quick Chip Removal; How To - BGA Re-Balling; How To - Rework PLCC, QFP, QFN, LCC, SOIC, SOL, Shielded SMD, TSOP; How To - Solder & Rework Ceramic Capacitors; How To - Solder & Rework Glass Diodes; How to Repair Smartphones, Tablets and Laptops

Soldering, De-Soldering
Soldering Accessories, Solder Wire, No-Clean Solder Wire, Eutectic Solder Wire, Solder Wire Dispenser, Solder Paste, Lead-Free Solder Paste, Flux, Solder Paste Dispensers, Low Melt
® DeSolder Wire, De-Solder Wire, Soldering Tips, Thru-Hole DeSoldering Tools, DeSoldering Tips, Tips for DeSoldering, De-Solder Wick & DeSoldering Braid, Smoke Extractors, Fume Extractor Filters, Carbon Activated Filters, SolderMill™, Solder Sucker / DeSolder Pump, Pre-heating Systems, Preheat Thru-Hole, PCB Pre-heaters, Flux Solvent, How To - Connector Rework; How To - PC/104 Soldering and Rework; How To - Thru-Hole / Through Hole Desolder / De-Solder; How To - Low Melt® Desolder Wire; How To- Stop Lifting Pads; How To- Desolder / De-Solder Heavy Ground Planes; How To - Lead-Free Soldering and De-Soldering; Pre-Heaters for Lead-Free Rework and Soldering

Dispensing Equipment, Gear, Supplies, Dispensing Bottles & Dispensing Accessories
Dispensing Systems, Dispensing Syringes, Dispensing Barrels, Tapered Dispensing Tips, Blunt Needles,
Dispensing Bottles, Stainless Steel Needles, Dispensing Needles, Industrial Needles, Dispensing Tips, Industrial Dispensing Tapered Tips and Needles, Dispensing Accessories, Flux Bottles, Solder Paste in Syringe, Paste Rack Solder Paste Holder, Dispensing Supplies, Power Palm Plunger, Manual Dispensing, Alcohol Pump Bottles, Automatic Dispensing, Squeeze Bottles, Wash Bottles, Brush Bottles, Spout Bottles, Pump Bottles

Benchtop Accessories, Bench Supplies, Benchtop Tools
SMD Solder Paste, Solder Wire, LowMelt®, No-Clean Flux, BGA Flux, Rework Tack Flux, Non-Flammable Flux Remover, Pen Vac, SMT Tweezers, Fume Extraction, SMD Tweezers, PC Board Fixtures, Hot Air Tips, AirTips, Replacement Soldering Sponges, Iron Plated Soldering Tips, Foam Swabs, Anti-Static Foam Swabs, Thru-Hole & Solvent Brushes, Helping Hands, LMK Rework Kits,
X-BOX 360 Repair, Wire Strippers & Wire Cutters, Flush Cutters, Micro Shears & Needle Nose Piers, Straightening Tool for QFP Leads, ESD Wrist Straps, ESD Wrist Strap Tester

Updated for July 3, 2017
